Product Details

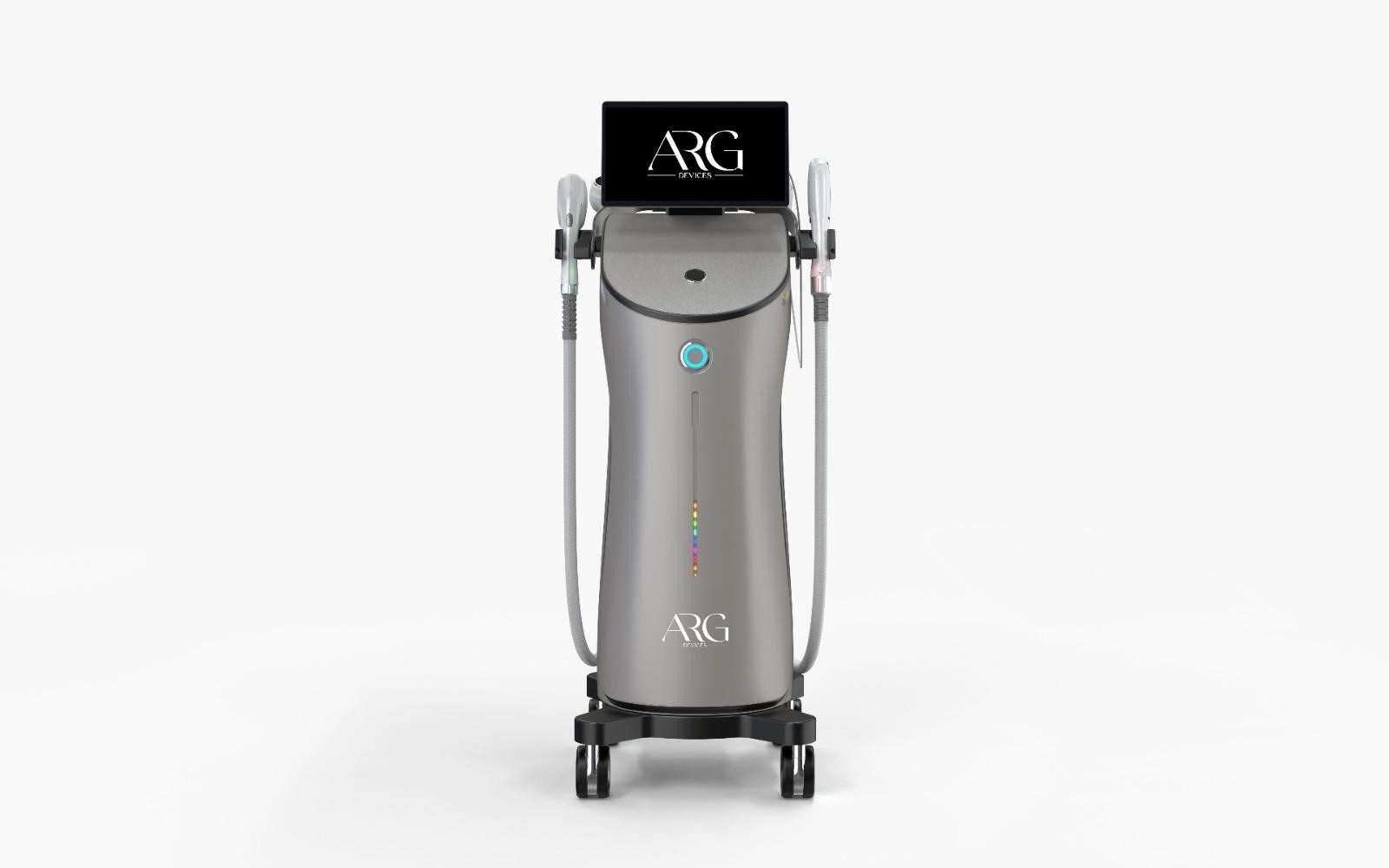

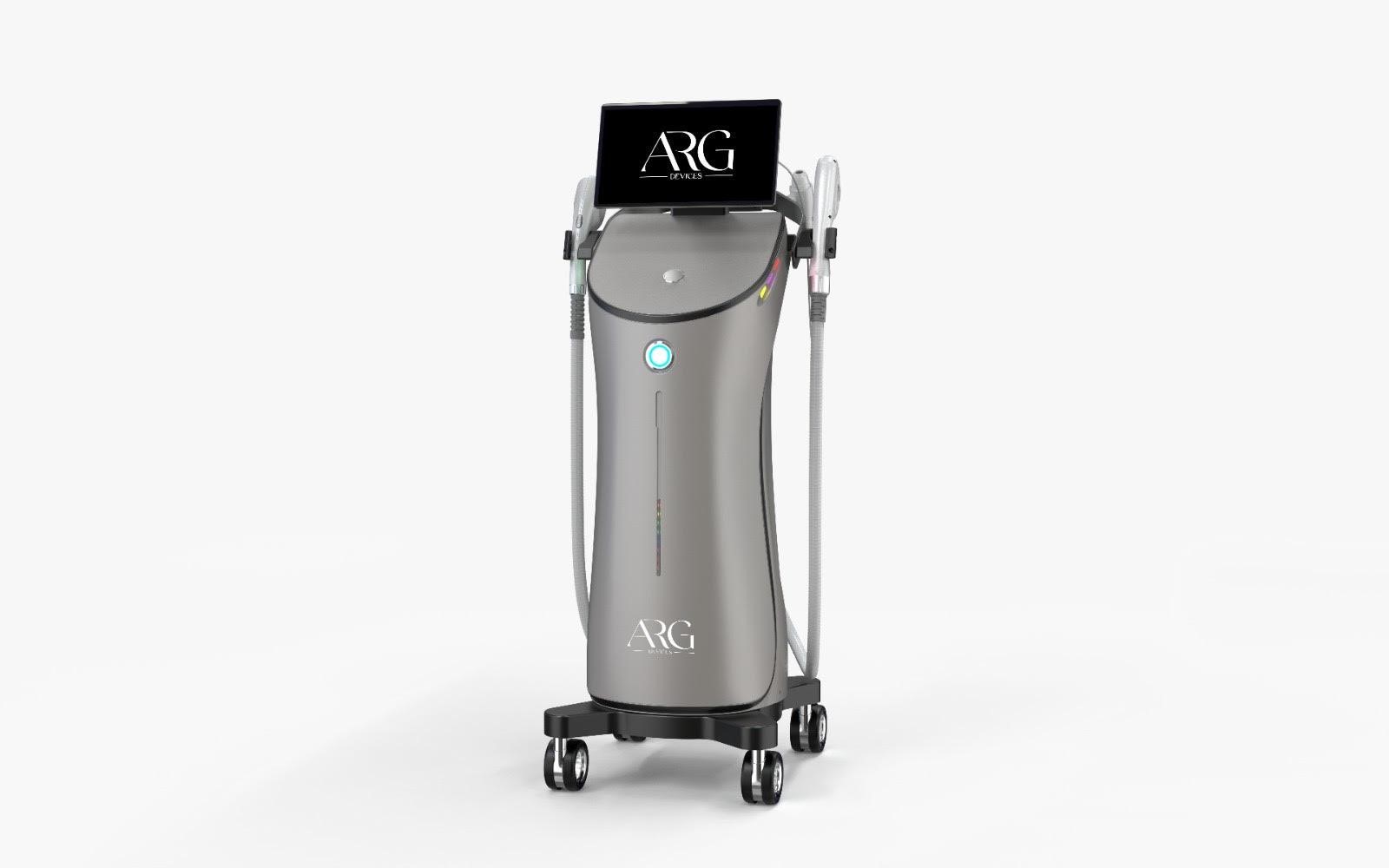

DPL + NIR IPL Skin Therapy Machine
Advanced Light Technology. Intelligent Performance. Exceptional Results.
The DPL + NIR IPL Skin Therapy Machine – is a next-generation, multi-functional aesthetic platform that combines Dye Pulsed Light (DPL) and Near-Infrared (NIR) technologies in one powerful, intelligent system. Designed for med spas, dermatology clinics, and aesthetic practices, this platform delivers precision-based treatments for pigmentation, vascular concerns, acne, rejuvenation, and skin tightening. With Android-based smart technology, cloud connectivity, and interchangeable treatment heads, the I9 offers both clinical versatility and modern operational efficiency.What is DPL Technology?
DPL (Dye Pulsed Light) is an advanced evolution of traditional IPL. Unlike standard IPL, DPL uses specially designed filters to narrow the light spectrum into a precise 100nm band, targeting:- Hemoglobin (redness & vascular lesions)
- Melanin (pigmentation)
Ideal For:
- Acne & post-acne redness
- Rosacea & telangiectasia
- Pigmentation & sun damage
- Photorejuvenation
- Hair removal (multiple skin types)
What is NIR Technology?
Near-Infrared (NIR) operates within the 650–1800nm range and penetrates directly into the dermis. By generating controlled thermal stimulation (42–45°C), it supports collagen remodeling and skin renewalNIR Treatment Benefits:
- Brightening & radiance enhancement
- Improved appearance of fine lines & laxity
- Pore refinement
- Skin barrier support
- Redness reduction
- Acne control
Specifications
Multi-Functional Handpieces
The platform includes specialized handpieces for comprehensive treatment options:
DPL Handpiece
- 5 replaceable spot sizes (7mm to 10x40mm)
- Magnetic quick-change design
- Sapphire crystal for superior cooling & durability
- Imported UK xenon lamp (1.5 million shot lifespan)
- Ultra-light ergonomic design
NIR Handpiece
- German-imported tungsten lamp
- 5,000-hour lifespan
- Gentle, no-downtime experience
Skin Detection Handpiece
- 1920×1080 HD imaging
- White, polarized, and UV light modes
- Ideal for skin analysis and treatment planning
Cooling Handpiece
- No water connection required
- Targeted cooling down to -5°C
- Enhances patient comfort during treatments
Intelligent Android Operating System
The device features a 15.6-inch HD Android touchscreen with WiFi and Bluetooth connectivity
Key features include:
- Remote mobile control
- Cloud data transfer
- User profile creation & management
- Parameter adjustment via mobile device
- Smooth, smartphone-style interface
Designed for modern clinics, this intelligent platform enhances workflow efficiency and treatment consistency.
Advanced Cooling & Power System
- 108W high-power cooling chip
- Cooling temperature down to -30°C
- Water + wind cooling system
- Aerospace-level power supply
- 4000W total power output
Engineered for stability, safety, and long-term durability in high-volume practices.
Technical Specifications
- Power: 4000W
- DPL Output Power: 2000W
- NIR Output Power: 100W
- DPL Energy Range: 1–15 J/cm²
- Pulse Range: 1–10 ms
- Frequency: 1–10 Hz
- NIR Energy Range: 20–50W
- Cooling Temperature: -30°C
- Screen: 15.6-inch HD Android
- Voltage: 110V / 220V compatible
brochure of DPL NIR skin ther…Includes shipping
Warranty: 2 Years
Shipping Time: 2-4 weeks
