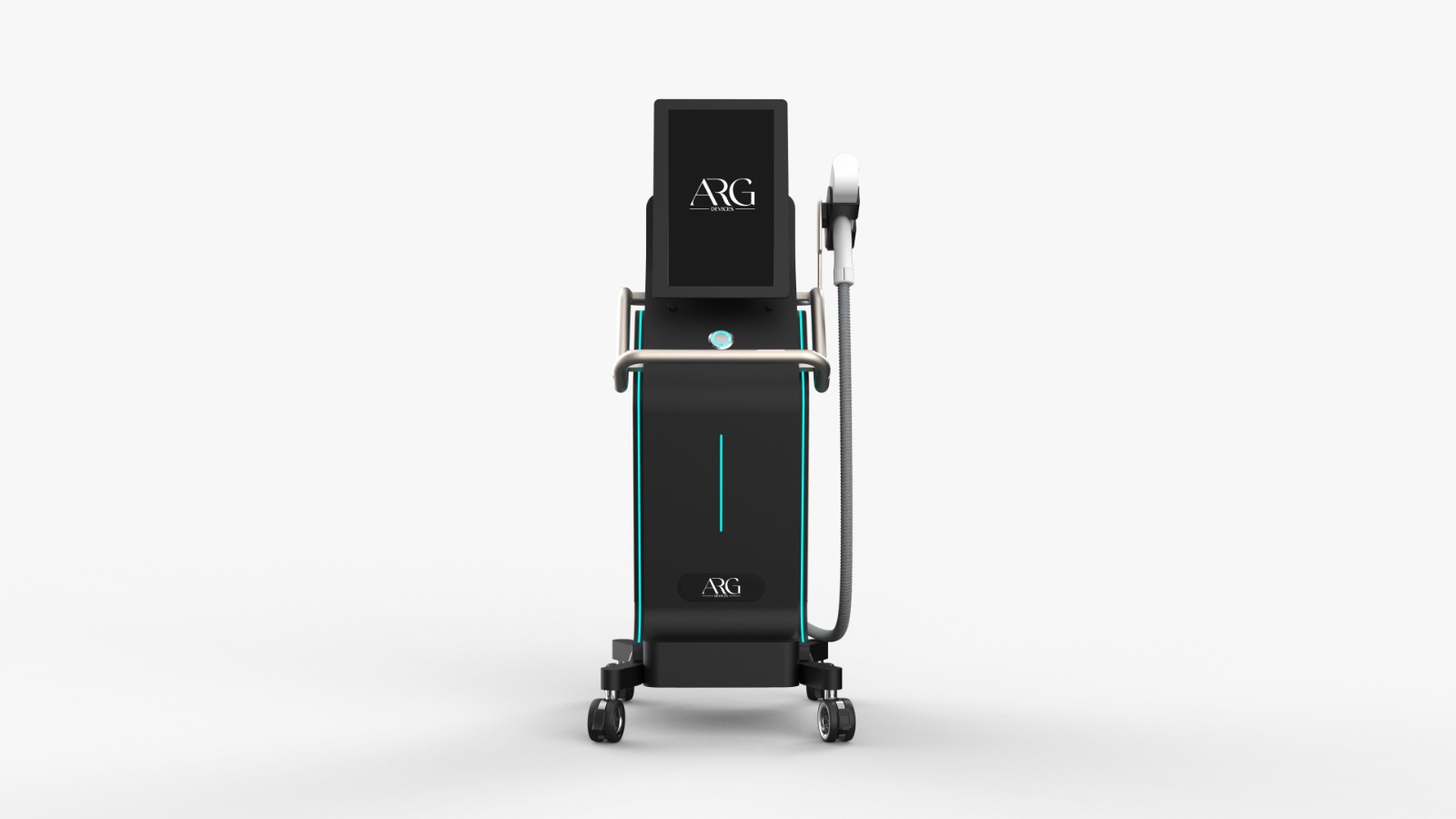

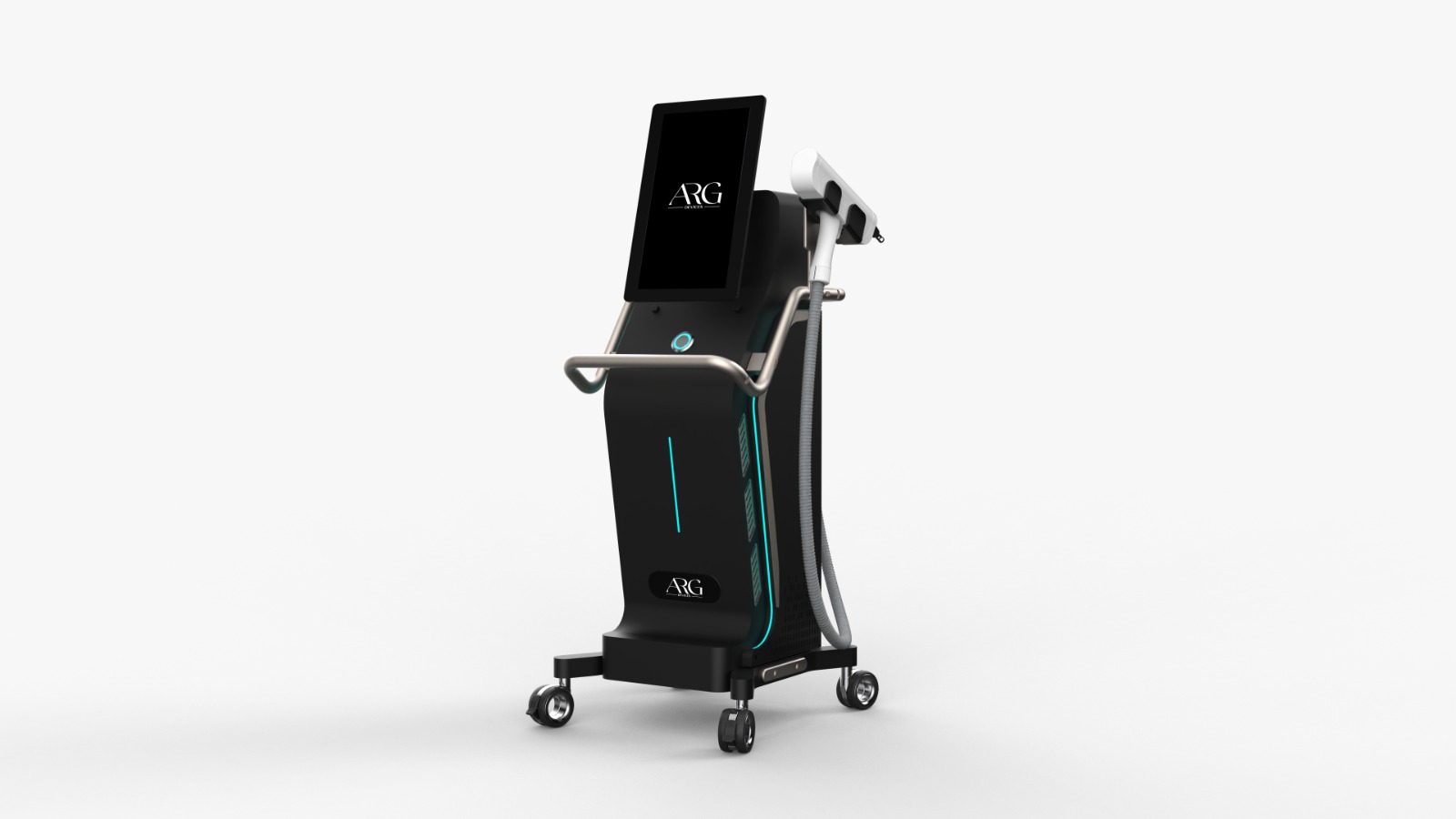

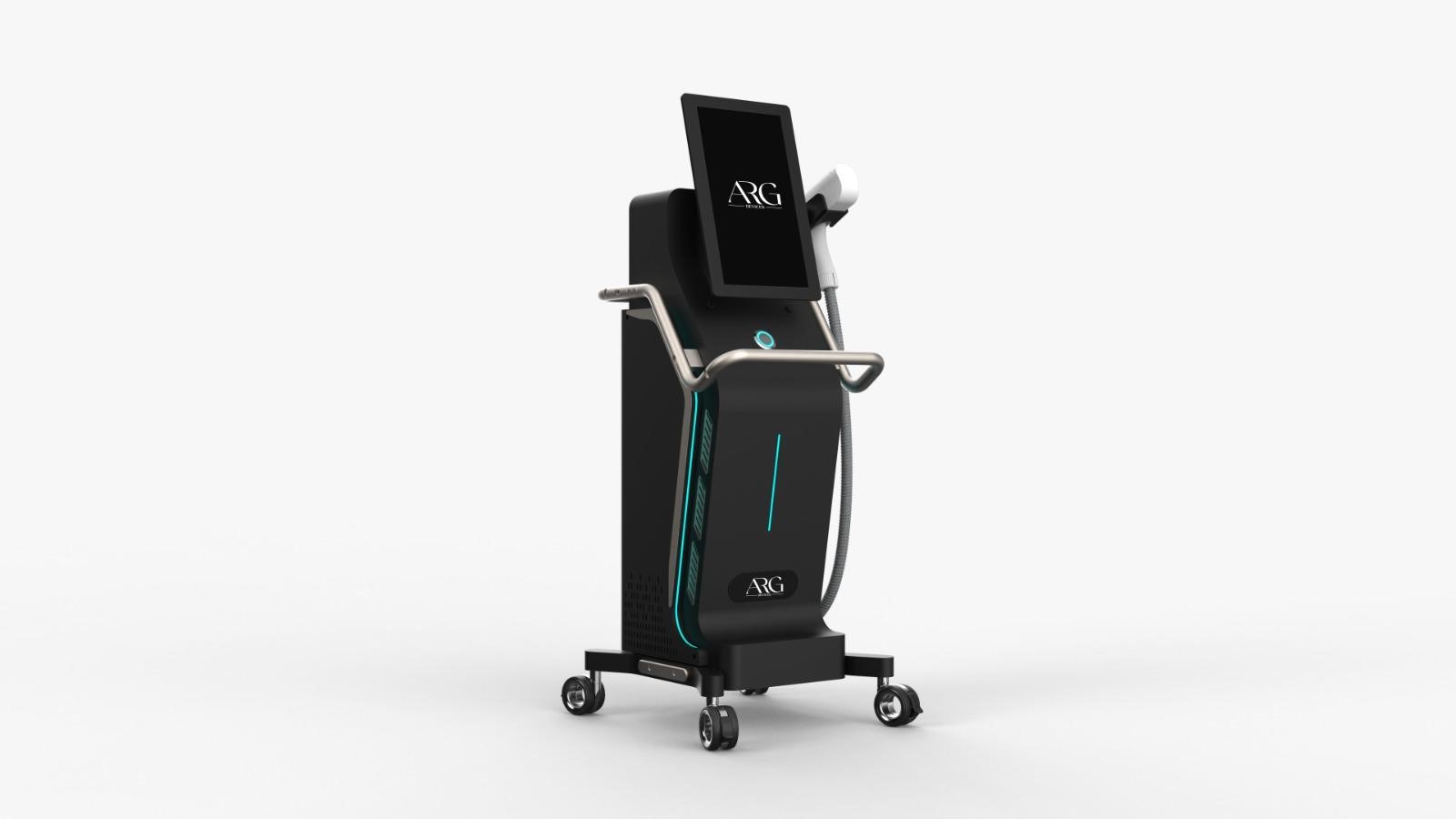

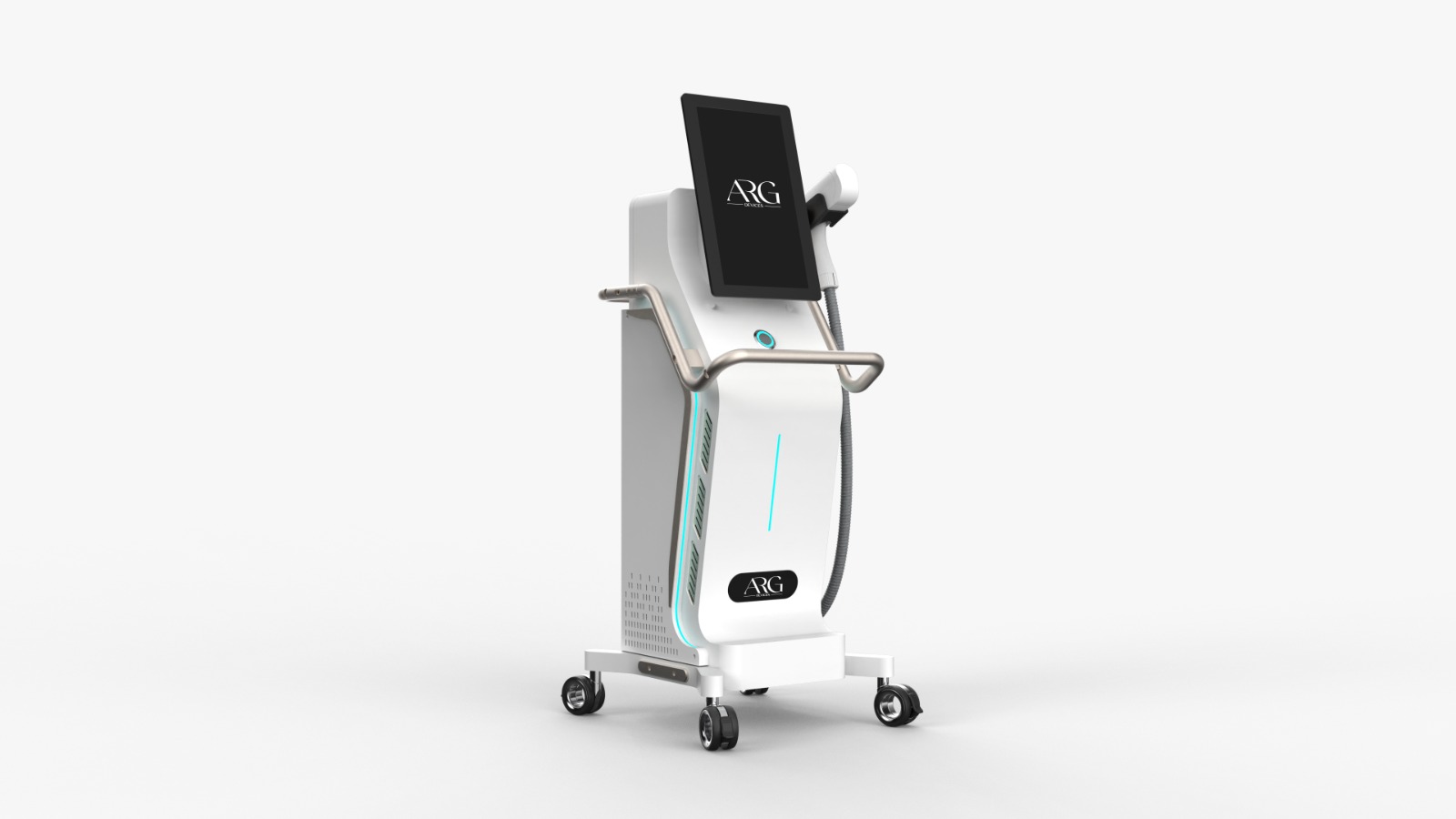

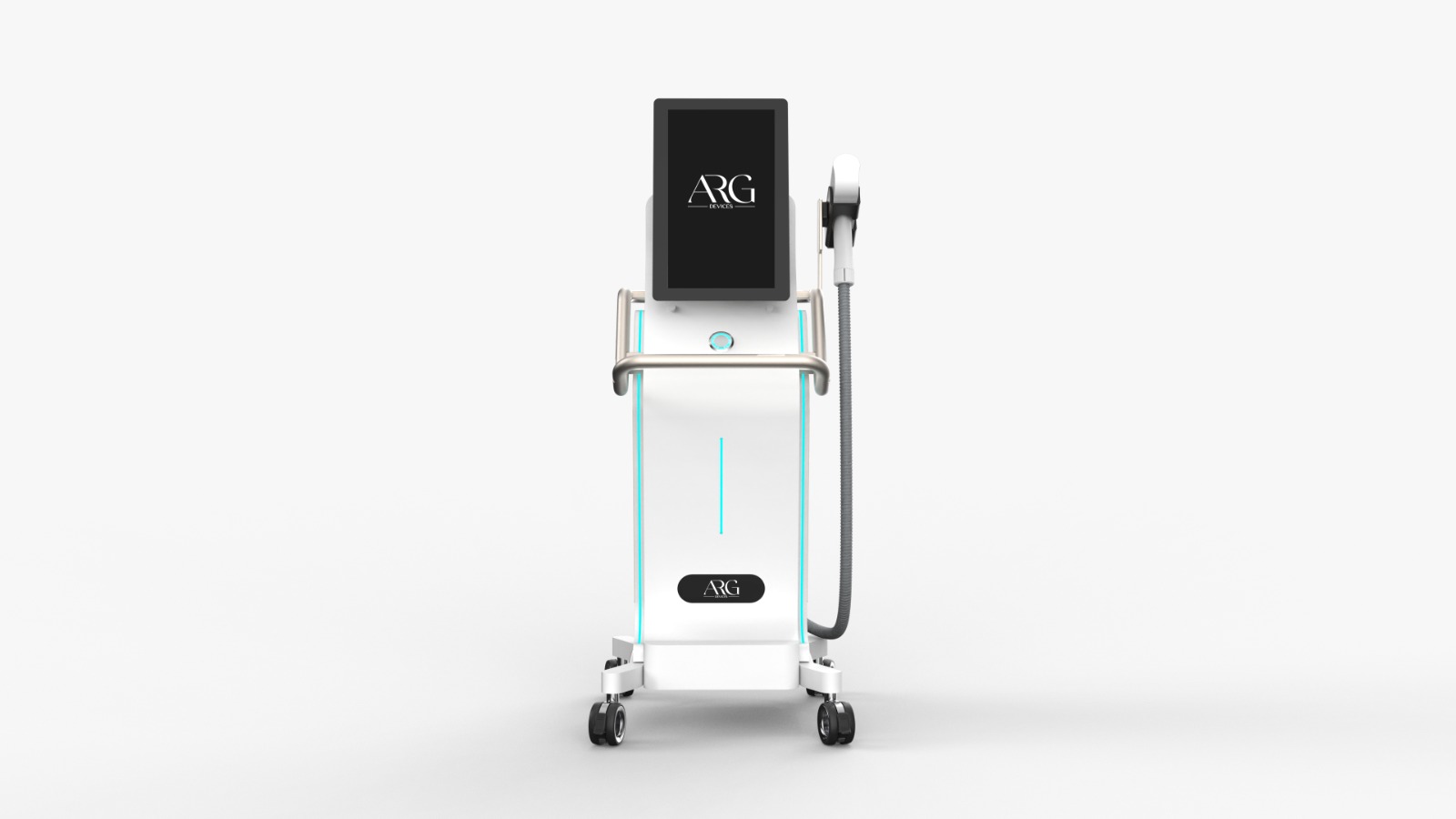

Q-Switched Nd:YAG Laser QL9

Advanced Pigment, Tattoo & Skin Rejuvenation System

The Q-Switched Nd:YAG Laser QL9 is a high-performance, multi-wavelength laser platform designed for professional pigment removal, tattoo removal, and comprehensive skin rejuvenation treatments. Utilizing advanced Q-switch technology, the QL9 delivers ultra-short laser pulses that selectively target pigment particles while minimizing damage to surrounding tissue—ensuring effective results with enhanced patient safety and comfort

How It Works

The QL9 operates on the principle of selective photothermolysis. Laser energy at specific wavelengths is delivered in extremely short bursts, causing pigment particles to rapidly heat and fragment. These microscopic fragments are then naturally cleared by the body through lymphatic metabolism, resulting in gradual fading of unwanted pigment and tattoos

Key Treatment Applications

• Tattoo removal (black, blue, red, and multicolor inks)
• Pigmented lesions & sun spots
• Freckles and age spots
• Eyebrow tattoo correction
• Skin rejuvenation & tone refinement
• Carbon laser facials (Hollywood Peel)

Multi-Wavelength Versatility

The system supports multiple wavelengths to address a wide range of indications:

• 1064nm – Deep pigment & dark tattoo ink
• 532nm – Superficial pigment, red/brown tattoos
• 1320nm – Carbon peel facial treatments
• 755nm (optional) – Fractional rejuvenation treatments

Interchangeable Treatment Heads

The QL9 includes up to 5 specialized treatment heads, allowing providers to customize treatments across different skin concerns and body areas. Adjustable spot sizes (1–6mm) enable precision control for both large and delicate treatment zones

Carbon Laser Peel Capability

With the 1320nm carbon peel lens, providers can offer painless, no-downtime carbon laser facials ideal for:

• Oily skin
• Enlarged pores
• Acne & blackheads
• Dull or uneven skin texture

This treatment instantly refreshes the skin, leaving it smoother, brighter, and more refined

Advanced Cooling & Durability

A super refrigeration system allows the QL9 to operate continuously for up to 12 hours, maintaining system stability, extending component lifespan, and ensuring consistent performance during high-volume clinical use

High-Energy Laser Core

• 7mm Nd:YAG laser rod for increased energy output
• UK xenon lamp with up to 5 million shot lifespan
• Dual-rod handle design for stable, powerful delivery

Technical Specifications

• Power: 1200W
• Energy Output: 100–1500mJ
• Frequency: 1–10Hz
• Screen: 15.6” touchscreen
• Cooling: Air + Water cooling
• Voltage: 110V / 220V compatible

INCLUDES: Shipping

WARRANTY: 2 Year’s

SHIPPING TIME: 2-4 weeks
